Dyoplosaurus | Double-Armoured Dinosaur of the Late Cretaceous

In the vast and varied landscapes of the Late Cretaceous, a heavily armored dinosaur known as Dyoplosaurus roamed the terrain that is now Alberta, Canada. Known as the “Double-armoured Lizard,” this dinosaur’s name evokes its formidable defense mechanisms. Discovered over a century ago, Dyoplosaurus provides an intriguing glimpse into the evolution of ankylosaurs, showcasing unique adaptations that enabled it to thrive in its predator-filled world.

Dyoplosaurus was first uncovered in the early 20th century and has since captivated dino-enthusiasts with its distinctive features. Its well-preserved fossils have shed light on the intricate design of its armor, offering insights into its anatomy and the environment it inhabited. This dinosaur’s story is a fascinating chapter in the study of ankylosaurs, revealing the diversity and complexity of these armored giants.

Dyoplosaurus Key Facts

Dyoplosaurus Origins, Taxonomy and Timeline

The name Dyoplosaurus, translating to “Double-armoured Lizard,” vividly captures the essence of this dinosaur’s protective adaptations. The name is derived from the Greek words “dyo,” meaning double, “hoplon,” meaning weapon, shield, or armor, and “sauros,” meaning lizard. This evocative name reflects the robust and layered armor that characterized this dinosaur, a feature that both unites it and – with respect to subtle variations – distinguishes it from other ankylosaurus.

Taxonomically, Dyoplosaurus falls within the group Ankylosauria, a clade of heavily armored dinosaurs known for their distinctive body armor and defensive adaptations. It is further classified in the family Ankylosauridae, with most of the taxa comprising this sub-clade sporting the famous ankylosaur tail club. The type species, Dyoplosaurus acutosquameus, was first described in 1924 by William Arthur Parks, with is specific title (derived from the Latin words for “sharp” and “scale”) further highlighting its dramatic defensive features.

Dyoplosaurus lived during the Late Cretaceous Period, specifically in the middle Campanian Epoch, approximately ~76.5–75 million years ago. This time frame was marked by significant geological and climatic changes, providing a rich and varied environment for dinosaurs. The Dinosaur Park Formation in Alberta, Canada, where Dyoplosaurus was discovered, was a lush and dynamic habitat teeming with diverse flora and fauna.

Discovery & Fossil Evidence

The story of Dyoplosaurus begins in 1919 when Levi Sternberg discovered its fossils along the Red Deer River in Alberta, Canada. The Dinosaur Park Formation, renowned for its rich fossil deposits, yielded a remarkable specimen that would later be designated as the holotype, ROM 784. This initial discovery included significant portions of the skeleton, providing valuable insights into its anatomy and armor.

In 1924, William Arthur Parks formally described Dyoplosaurus acutosquameus, based on the fossils discovered by Sternberg. The holotype included parts of the skull, vertebrae, limbs, and extensive armor plating. The relative completeness of this assemblage helps bolster confidence in the validity of Dyoplosaurus, which has survived attempts to synonymize it with other ankylosaurs in the past, and provides a rich touchstone for better understanding ankylosaur morphology and evolution.

To date, no substantive additional finds of Dyoplosaurus have been reported, making the original discovery in Alberta even more significant. The well-preserved state of the fossils has allowed paleontologists to reconstruct its appearance and understand its role within the Late Cretaceous ecosystems. The Dinosaur Park Formation continues to be a vital source of information, providing context for the life and times of this fascinating dinosaur.

Dyoplosaurus Size and Description

Dyoplosaurus was a formidable member of the ankylosaur family, characterized by its robust armor and solid build. Its physical characteristics reveal a creature perfectly adapted for defense and survival in a world teeming with threats.

Short description of Dyoplosaurus

Dyoplosaurus had a broad, low-slung body covered in thick, bony armor plates, which provided excellent protection against predators. Its head was adorned with small, bony knobs and a beak-like mouth, suitable for cropping vegetation. The neck was relatively short and heavily armored, ensuring protection from attacks.

The vertebral column of Dyoplosaurus was sturdy and – like other ankylosaurs – likely fused in the region of the hips, supporting its massive body and heavy armor. Its limbs were strong and stocky, with four-legged locomotion that gave it stability and strength. The tail was particularly noteworthy, likely ending in a club-like structure that may have been used defensively. In addition to the osteoderms that formed the bulk of its armor, its skin was likely covered in tough, keratinous scales, adding an additional layer of defense.

Size and Weight of Type Species

The type species, Dyoplosaurus acutosquameus, measured between 13.0 to 15.0 feet in length. This substantial size made it one of the more imposing ankylosaurs of its time. Standing at about 4.5 feet tall, it had a low center of gravity, which contributed to its stability and ability to navigate its environment.

Weighing approximately 1.3 tons, Dyoplosaurus was a heavyweight among herbivores. This considerable mass, combined with its thick armor, made it a challenging target for predators. The combination of size, weight, and defensive adaptations paints a picture of a well-protected dinosaur that relied on its physical attributes for survival.

The Dinosaur in Detail

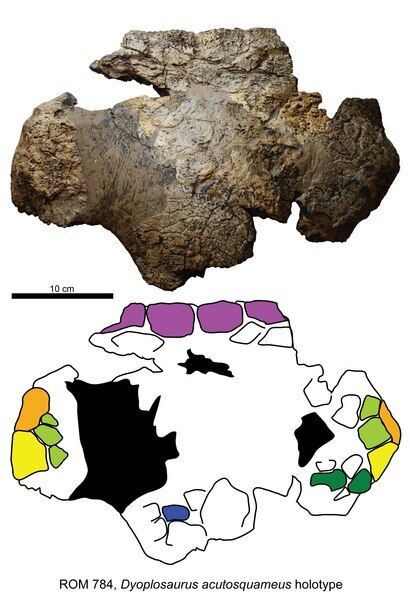

The holotype specimen of Dyoplosaurus preserves remnants of fossilized skin and osteoderms, with the latter forming a near-unbroken mosaic of small knobs along its flank. The intricate arrangement of its armor plates, interspersed with sharp, triangular protrusions, created a formidable shield against potential attackers.

Its limbs, designed for strength rather than speed, indicate that Dyoplosaurus was not built for fast movement. Instead, its primary defense mechanism was likely its armored body and powerful tail club, which could deliver devastating blows to predators. This adaptation showcases its evolutionary strategy of relying on physical defense rather than agility.

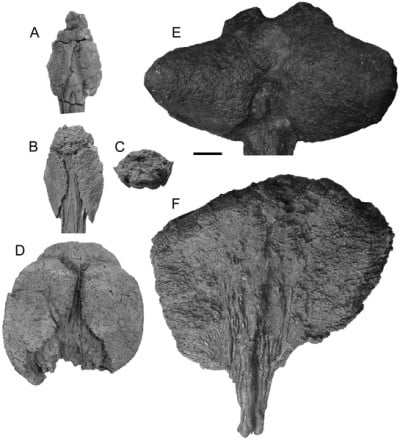

Intriguingly, the tail club of Dyoplosaurus, which was supported by ossified tendons that extended along the sides of its tail, was narrower and generally smaller than that of other ankylosaurs. The tail clubs of well-known taxa like Ankylosaurus tended to be at least as wide as longs. However, Dyoplosaurus’ club was notably longer than wide. A 2009 study by Victoria Arbour concluded that the relatively diminutive size of Dyoplosaurus’ club meant it was probably unable to generate the sort of whalloping-power necessary to puncture bone. This raised the possibility that the club was inadequate as a defensive weapon. It may have instead been used in interspecific (within species) combat or a related capacity.

Contemporary Dinosaurs

During the Late Cretaceous Period, Dyoplosaurus shared its environment with numerous predatory theropods, horned ceratopsians, domed pachycephalosaurs, duck-billed ornithopods, and, of course, several other species of armored dinosaur, each adding to the complexity of the rich ecosystem they inhabited.

One contemporary was Euoplocephalus, a well-known ankylosaur with similar defensive adaptations. Euoplocephalus was slightly larger and featured a more pronounced tail club, which it likely used in defensive encounters. The coexistence of these two dinosaurs indicates a diverse range of defensive strategies within the Ankylosaur family.

Edmontonia, another armored dinosaur, also roamed the same landscapes. Unlike Dyoplosaurus, Edmontonia belonged to the nodosaurid group. As such had more pronounced shoulder spikes and lacked a prominent tail club. This variation in armor and defensive structures suggests a wide array of adaptations to different ecological niches and threats.

Panoplosaurus, another nodosaurid, exhibited a unique combination of armor and mobility. It had extensive armor plating along its back and sides, providing excellent protection. However, it lacked the tail club seen in Dyoplosaurus and Euoplocephalus. Indicating different defensive strategies and possibly varying behaviors and habitats.

Another of the contemporaries of Dyoplosaurus was Anodontosaurus, an ankylosaur known for its heavily armored body and tail club. Anodontosaurus shared many similarities with Dyoplosaurus, but with distinct differences in the arrangement and structure of its armor. These differences highlight the diversity within ankylosaurs and their adaptability to various environmental challenges.

Interesting Points about Dyoplosaurus

Dyoplosaurus in its Natural Habitat

Dyoplosaurus inhabited the lush floodplains of the Late Cretaceous, a period marked by warm climates and diverse ecosystems. The fossils were found in the Dinosaur Park Formation in Alberta Canada. A vibrant environment, with both river systems and floodplains with abundant vegetation and a variety of other dinosaur species. This rich habitat provided ample food sources for herbivores like Dyoplosaurus.

As a herbivore, Dyoplosaurus fed on low-lying vegetation, utilizing its beak-like mouth to crop plants efficiently. Its robust body and powerful legs suggest it spent much of its time foraging for food. Likely moving slowly through its environment. The presence of other herbivorous dinosaurs in the same area indicates a competitive but resource-rich ecosystem.

Dyoplosaurus was likely a solitary animal or lived in small groups, relying on its thick armor and tail club for defense against predators. Its interactions with other contemporary dinosaurs, such as Edmontonia and Panoplosaurus, would have shaped its behavior and adaptations. The heavily armored body and defensive features of Dyoplosaurus reflect its evolutionary strategy of prioritizing protection over speed or agility.

Frequently Asked Questions

Sources

The information in this article is based on various sources, drawing on scientific research, fossil evidence, and expert analysis. The aim is to provide a comprehensive and accurate overview of Dyoplosaurus.

Article last fact checked: Joey Arboleda, 06-20-2024
